What Is Paddle Dryer Design and Why Does It Matter?
Paddle dryer design decides how efficiently wet sludge, slurry, paste, cake, powder or granules are dried inside an enclosed indirect-heating system. A good design controls heat transfer, agitation, residence time, vapor handling, discharge behavior and maintenance access. For buyers, the correct paddle dryer design is not only a machine choice, it is a plant-performance decision.
A paddle dryer uses a heated jacket and hollow rotating shafts to transfer heat indirectly into the material. The paddles continuously agitate, shear and renew the product surface so moisture or solvent can evaporate more uniformly.
This is why plants handling difficult wet material often compare paddle dryers with belt dryers, tray dryers, rotary dryers and solar drying systems before finalizing equipment. For a deeper technology reference, see this guide on hollow paddle dryers and industrial thermal drying technology.
In practical selection, the main design questions are simple: What is the feed moisture? Is the feed sticky, abrasive, corrosive or heat-sensitive? What final moisture is required? What heating medium is available? What vapor treatment is required? The answers decide whether the plant needs a standard, dual-zone or vacuum paddle dryer.
How Does the Paddle Dryer Working Principle Actually Operate?
The paddle dryer working principle is based on indirect heat transfer, continuous agitation and controlled material movement. Heat does not come from direct flame contact with the product. Instead, steam, thermic fluid or another heating medium transfers heat through the dryer body, hollow shaft and paddles.
Inside the dryer, dual counter-rotating shafts fitted with wedge-shaped paddles move and mix the feed. The intermeshing paddle action helps prevent material build-up, supports self-cleaning behavior and exposes new wet surfaces to heated metal contact.
As the wet material moves through the dryer, it typically changes from plastic or sticky behavior toward a sheared and then granular discharge condition. This change is important for sludge, filter cake and sticky process residues because poor agitation can create lumps, dead zones and uneven outlet moisture.
The plug-flow movement helps reduce back-mixing. That matters when a buyer wants consistent discharge moisture instead of partially dried and over-dried material leaving together. For sludge-focused buyers, this sludge drying technology guide explains why controlled thermal drying is often used after dewatering.
Key Paddle Dryer Specifications Buyers Should Check
Paddle dryer specifications must be matched to the material, heating medium, process pressure, corrosion risk and required final moisture. A specification sheet should not be treated like a generic equipment form. Small errors in feed data or discharge expectations can create major performance problems after installation.
Per AS Engineers, paddle dryers can be configured for indirect steam heating up to 14.06 kg/cm² or thermal oil heating up to 400°C, depending on the application. The system can be designed for atmospheric, vacuum or pressurized operation. Available materials of construction include Carbon Steel, SS304, SS316, Duplex Steel and other alloy steels.
Important specification points include:
Feed form: slurry, paste, cake, granule or powder.
Heating medium: steam, thermic fluid, hot water or other site-specific option.
Operating mode: atmospheric, vacuum or pressurized.
Target dryness: application-specific, with capability up to 99% dryness where the material and process allow it.
Material of construction: selected based on corrosion, hygiene, abrasion and temperature.
Surface finish: buffing, hard facing or electropolishing where required.
Vapor handling: condenser, scrubber, cyclone, bag filter, ID fan or chimney arrangement.
Discharge system: screw conveyor, bagging system, silo, bucket elevator or truck disposal system.
A serious buyer should also ask about feed consistency. A dryer sized only on average moisture can underperform when upstream dewatering fluctuates. Pilot testing is often the safer route for sticky, variable or high-value materials. AS Engineers offers a paddle dryer pilot trial option for application evaluation before full-scale decision-making.
Which Paddle Dryer Design Features Reduce Operating Risk?
The most useful design features are those that reduce fouling, moisture variation, vapor handling problems and mechanical wear. Buyers often focus heavily on capacity, but capacity without stable operation is not enough. A dryer that is difficult to clean, feed or maintain can become an expensive bottleneck.
Look closely at the following design elements:
The hollow shaft and jacket increase the heat transfer area.
Counter-rotating shafts improve mixing and surface renewal.
Wedge or hammer paddles help break down wet feed and bound moisture.
Self-cleaning paddle movement reduces the chance of sticky build-up.
No metal-to-metal contact supports longer equipment life.
Compact off-gas volume helps reduce downstream pollution control load.
The feeding system is equally important. Belt conveyors, screw feeders and sludge pumps each suit different feed conditions. A poor feed system can overload one zone of the dryer, create uneven residence time and reduce drying efficiency.
The scavenging and pollution-control arrangement must also be planned early. In many plants, vapor, odor, solvent or fine-particle handling is not optional. For buyers comparing drying routes, this article on thermal drying and solar drying helps clarify when controlled industrial drying is the safer choice.
Paddle Dryer Applications Across Industries
Paddle dryer applications extend beyond sludge drying. The same indirect-heating principle can support drying, heating, cooling, solvent stripping, roasting and calcining in selected industrial processes. This versatility is one reason paddle dryers are used by environmental, chemical, food, pharmaceutical, mining, polymer and material-processing plants.
Common application areas include ETP sludge, STP sludge, bio-sludge, paper sludge, textile sludge, chemical sludge, pigments, dyes, starch, DDGS, gypsum, PET chips, superabsorbent polymers, lithium hydroxide, copper concentrate, manganese dioxide and drilling mud.
For environmental and waste-management teams, paddle dryers help reduce sludge volume and improve handling. For chemical and pharmaceutical plants, enclosed indirect drying can support better vapor control and solvent-management planning. For food and agriculture applications, the system must be specified around hygiene, heat sensitivity and product behavior.
Relevant application references include chemical industry sludge drying, food industry sludge drying and environmental sludge drying benefits. For broader AS Engineers application coverage, review paddle dryer applications in multiple industries.
Paddle Dryer Design Selection Table for Buyers
The right paddle dryer specification depends on feed behavior and buyer objective. The table below gives a practical decision view before requesting a quotation.
| Buyer Decision Point | What to Check | Design Impact | Risk if Ignored |
|---|---|---|---|
| Feed moisture variation | Daily and seasonal moisture range | Dryer sizing and residence time | Wet discharge or excess energy use |
| Stickiness | Paste, sludge cake or tacky solids | Paddle geometry and self-cleaning need | Build-up, torque rise and stoppage |
| Corrosion risk | Chlorides, acids, solvents or chemical residues | MOC selection such as SS304, SS316, Duplex or alloy | Premature failure and contamination |
| Final moisture target | Disposal, reuse, fuel, fertilizer or process reuse | Heat duty and discharge control | Overdrying or non-compliant output |
| Vapor composition | Water vapor, solvent, odor or fines | Scrubber, condenser, cyclone or bag filter | Emission and safety issues |
| Heating medium | Steam, thermal oil, hot water or site fuel economics | Heating system selection | High operating cost or insufficient heat |
| Maintenance access | Shaft, gearbox, bearing and cleaning access | Layout and service planning | Long downtime during inspection |
AS Engineers positions itself as The Leading Name in Paddle Dryer Industry and manufactures from GIDC Vatva, Ahmedabad, Gujarat, India. The company’s paddle dryer work is backed by 25+ years of experience, ISO 9001:2015 TUV India certification, CE certification, 500+ clients and 1500+ projects, according to AS Engineers company materials. Buyers can also review AS Engineers’ paddle sludge dryer design reference for application-specific design context.
What Mistakes Should Buyers Avoid Before Finalizing Specifications?
The biggest mistake is asking for a paddle dryer quotation before defining feed data, final moisture, vapor treatment and handling requirements. A low-detail enquiry can produce a low-confidence specification. That creates risk for both buyer and manufacturer.
Avoid these common errors:
Do not specify only “tons per day” without initial moisture and final moisture.
Do not ignore upstream dewatering quality.
Do not select MOC only by price when the material is corrosive.
Do not forget vapor treatment, odor control or solvent recovery needs.
Do not assume one design fits sludge, food, chemicals and minerals equally.
Do not finalize layout without discharge conveying and bagging planning.
For sludge projects, AS Engineers’ official data shows a strong disposal-cost logic: 10 tons/day wet sludge can reduce to 2 tons/day dry sludge in the stated example, reducing disposal burden significantly where similar feed and disposal assumptions apply. This does not replace a plant-specific calculation, but it shows why sludge volume reduction is often the main business driver. For sludge-specific equipment context, see AS Engineers’ paddle dryers for sludge drying.

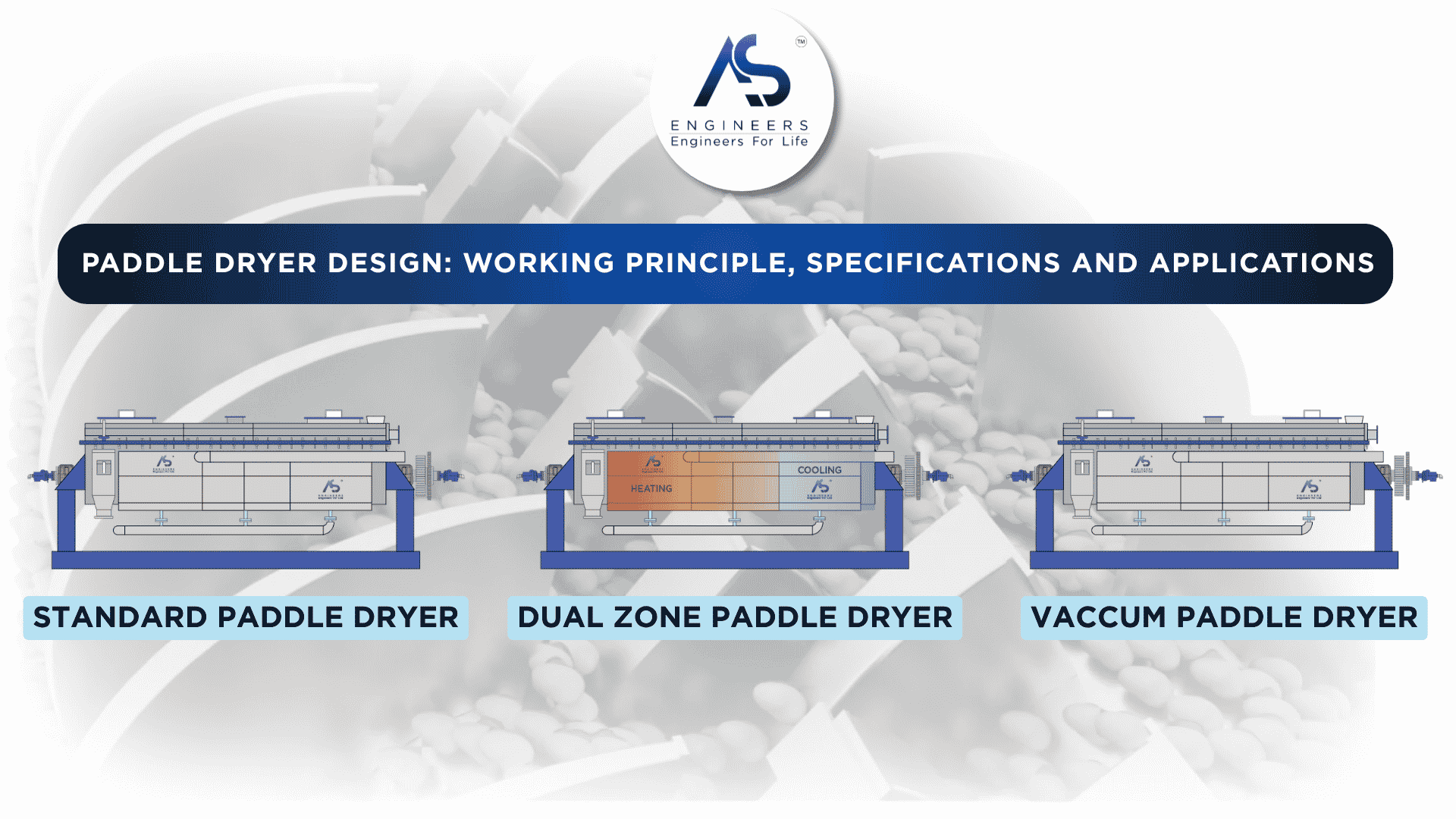

When Should You Choose Standard, Dual-Zone or Vacuum Paddle Dryer Design?
Choose the dryer type based on material sensitivity, moisture profile and process requirement. A standard paddle dryer may suit many sludge and bulk drying duties. Dual-zone or vacuum configurations become important when drying behavior changes across the machine or when lower-temperature drying is required.
A standard dryer is commonly selected when the feed is stable and the heating requirement is straightforward. A dual-zone dryer can support more controlled heating across different process stages. A vacuum dryer is useful when the material is heat-sensitive, solvent recovery is important or drying at lower operating temperatures is preferred.
Buyers should not choose these variants only by budget. The correct choice depends on trials, material data and outlet quality requirements. AS Engineers also provides services, spare parts, retrofitment and support for paddle dryer systems, which is relevant when plants need long-term operating reliability. For manufacturer and service background, visit AS Engineers’ paddle dryer manufacturer and service provider page.
FAQs
1. What is the basic paddle dryer working principle?
A paddle dryer works on indirect heat transfer. Heat passes through the jacket, hollow shaft and paddles into the wet material while rotating paddles mix, shear and move the feed toward discharge. Moisture or solvent evaporates and is handled through the vapor outlet and downstream system.
2. What are the most important paddle dryer specifications?
The most important paddle dryer specifications are feed moisture, final moisture, feed form, heating medium, operating pressure, material of construction, heat-transfer area, vapor handling system and discharge arrangement. For corrosive or solvent-bearing materials, MOC and vapor management are especially important.
3. What materials can be processed in a paddle dryer?
A paddle dryer can process many slurries, pastes, cakes, granules and powders. Typical applications include ETP sludge, STP sludge, bio-sludge, chemical sludge, pigments, dyes, gypsum, starch, DDGS, polymers, lithium hydroxide, copper concentrate and drilling mud.
4. Is a paddle dryer suitable for heat-sensitive material?
Yes, depending on the material and process requirement. Vacuum paddle dryer design can support lower-temperature drying and better solvent recovery planning. A pilot trial is recommended for heat-sensitive, sticky or high-value materials before final equipment sizing.
5. Why is pilot testing useful before buying a paddle dryer?
Pilot testing verifies drying behavior, discharge quality, moisture reduction, torque behavior, vapor load and handling difficulty. It reduces the risk of under-sizing, over-sizing, wrong MOC selection or unrealistic final moisture expectations.
For a reliable paddle dryer design, start with material testing, moisture data, heating-medium availability and vapor-handling needs. AS Engineers can help evaluate paddle dryer specifications for sludge, chemical, food, pharmaceutical, environmental and industrial drying applications. To discuss a project or technical enquiry, connect with AS Engineers.
