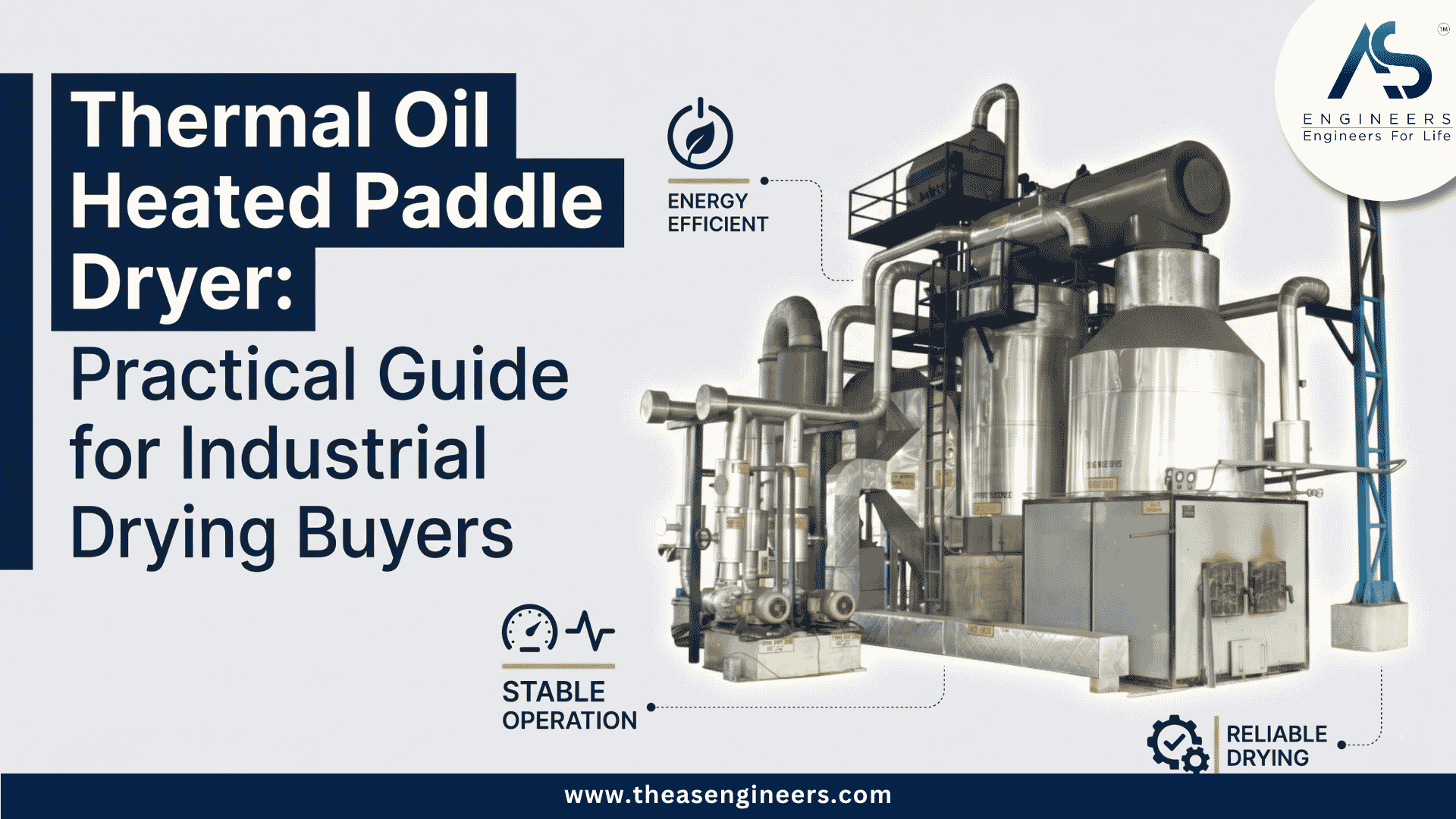

What Is a Thermal Oil Heated Paddle Dryer?
A thermal oil heated paddle dryer is an indirect heat dryer where hot thermic fluid transfers heat through the dryer jacket, hollow shafts, and paddles. It is used when a process needs controlled, uniform heating for sludge, paste, filter cake, slurry, granules, or powders. For buyers comparing industrial drying options, the main value is stable heat transfer without direct flame contact with the material.
In a paddle dryer, the wet feed moves through a heated chamber while rotating paddles mix, shear, and expose fresh surface area. The product does not depend on large volumes of hot air for primary drying. Instead, heat enters through metal contact surfaces, while evaporated moisture or solvent is removed through a controlled vapor handling system.
According to AS Engineers, paddle dryers can use steam or thermal oil as the heating medium, and thermal oil operation can go up to 400°C depending on the process requirement. That makes a thermal oil heated paddle dryer useful for higher-temperature drying duties where steam pressure, boiler availability, or process temperature control may become limiting.
How Does a Thermal Oil Paddle Dryer Work?
A thermal oil paddle dryer works by circulating heated thermic fluid through the jacket and hollow rotating shafts. The paddles mix and break the material while heat moves indirectly into the wet mass. This gives the dryer good contact efficiency, low off-gas volume, and controlled drying in a compact footprint.
The feed may enter as sludge, slurry, paste, cake, granule, or powder. Inside the dryer, wedge or hammer-style paddles continuously agitate the material. Sticky sludge or cake normally passes through a plastic, shearing, and granular phase as moisture is removed.
This indirect design matters because the heating medium does not mix with the product. For plants handling ETP sludge, STP sludge, chemical residues, pigments, dyes, minerals, polymers, or pharma intermediates, that separation can reduce contamination risk and simplify vapor management.
For a deeper explanation of the equipment family, the hollow paddle dryer technology guide is a useful supporting resource.
When Should You Choose Thermal Oil Instead of Steam?
Choose thermal oil when the process needs higher operating temperature, stable heat delivery, or a plant already has a thermic fluid system. Steam is often suitable for many drying duties, but thermal oil becomes more attractive when the required product temperature or evaporation load goes beyond practical steam limits. The correct choice still depends on feed behavior, target moisture, safety, utilities, and vapor handling.
Steam heating is common where the plant has boiler capacity and moderate drying temperatures are enough. Thermal oil heating is often preferred when the dryer must operate at elevated temperatures without moving into very high steam pressure systems.
A buyer should not select thermal oil only because it sounds more advanced. The decision should come from material trials, heat sensitivity, moisture load, plant utility cost, operator skill, and EHS requirements.
| Buyer Decision Factor | Steam-Heated Paddle Dryer | Thermal Oil Heated Paddle Dryer |
|---|---|---|
| Heat level requirement | Medium to high | High, up to 400°C as per AS Engineers data |
| Utility dependency | Boiler and steam pressure | Thermic fluid heater and circulation system |
| Temperature control | Strong for many duties | Strong where stable high heat is needed |
| Best-fit materials | Many sludge and industrial drying applications | Sludge, paste, cake, powder, chemical, mineral, and higher-temperature duties |
| Selection risk | Undersized boiler or pressure mismatch | Poor oil circuit design, pump sizing, or insulation |
| Testing need | Recommended | Strongly recommended |
For a broader heating-medium view, see AS Engineers’ guide on paddle dryer heating medium and fuel options.
Which Materials Fit a Thermal Oil Heated Paddle Dryer?
A thermal oil heated paddle dryer can fit wet, sticky, dense, or pasty materials that need continuous indirect drying. It is especially relevant when the product benefits from strong mixing and repeated contact with heated surfaces. Final suitability must be confirmed by feed testing because sludge and process residues can behave very differently across plants.
Common application groups include ETP sludge, STP sludge, biosludge, paper sludge, chemical sludge, filter cake, dye intermediates, pigments, gypsum, copper concentrate, lithium hydroxide, polymer residues, food by-products, and pharma intermediates. The same equipment principle can also support heating, solvent stripping, cooling, calcining, roasting, and related thermal processes.
In sludge applications, the dryer helps reduce wet mass and improve handling. For buyers studying sludge projects, the sludge drying paddle dryer guide and ETP sludge management resource give useful context before equipment selection.
What Are the Main Design Points Buyers Must Check?
The main design points are feed moisture, target outlet moisture, heat transfer area, residence time, vapor handling, material of construction, and discharge behavior. A thermal oil heated paddle dryer is not just a machine purchase; it is a process engineering decision. Weak sizing can cause poor drying, high energy use, fouling, odor issues, or unstable discharge.
Ask the manufacturer to evaluate bulk density, stickiness, corrosiveness, particle behavior, solvent or water vapor load, feed variation, and downstream handling. Materials of construction may include CS, SS304, SS316, Duplex Steel, or other alloys, depending on product chemistry and corrosion risk.
The heating circuit also needs attention. Thermic fluid temperature, pump capacity, piping insulation, expansion tank design, safety interlocks, and maintenance access affect real-world performance. A good dryer body cannot compensate for a poorly designed thermal oil loop.
AS Engineers’ thermic fluid paddle dryer benefits page can support buyers who are comparing thermal oil against other heating systems.
How Does It Help Sludge Volume, Disposal, and Handling?
Thermal drying reduces sludge moisture, which can reduce disposal volume, transport weight, storage space, odor, and manual handling problems. In paddle dryer-based sludge drying, wet sludge can become a more manageable dry or semi-dry product. The exact savings depend on initial moisture, final moisture, disposal rate, and whether dried material has reuse potential.
According to AS Engineers’ sludge drying data, a 10 ton/day wet sludge stream can reduce to about 2 ton/day after drying in a representative disposal-cost example. The same material may sometimes be evaluated for use as alternative fuel, cement input, bricks, or fertilizer, depending on composition and local regulations.
This is why buyers should not evaluate only dryer price. The right question is total cost of drying, disposal, compliance, storage, labor, and product handling. For comparison with other drying routes, see sludge drying methods comparing thermal drying and solar drying and paddle dryers vs belt dryers.
What Mistakes Cause Poor Thermal Oil Dryer Performance?
The most common mistake is selecting equipment from nameplate capacity instead of real feed behavior. Another mistake is ignoring the vapor system, because evaporated water or solvent still needs safe removal, condensation, scrubbing, or discharge. Thermal oil temperature alone does not guarantee drying performance.
Buyers should avoid assuming that all sludge with the same moisture percentage dries the same way. Two feeds at 80% moisture can have different stickiness, bound moisture, fiber content, ash, salt, and discharge behavior. That changes residence time, torque, heat transfer, and final product flow.
A second risk is underestimating maintenance access. Shafts, paddles, seals, bearings, gearboxes, rotary valves, cyclone, scrubber, condenser, and screw conveyors need practical inspection space. AS Engineers also provides paddle dryer services and OEM support for repair, upgrades, spares, alignment, and process optimization.
Should You Run a Pilot Trial Before Buying?
Yes, a pilot trial is strongly recommended when feed behavior is uncertain, sticky, variable, solvent-bearing, abrasive, corrosive, or commercially important. A trial helps confirm outlet moisture, drying behavior, discharge quality, vapor load, and operating risks before capital purchase. It is especially useful for sludge, filter cake, chemical residues, and waste-to-value applications.
AS Engineers offers a 50 kg/hr pilot trial machine at its facility or at the client’s site, with the trial fee waived upon order placement. This can help buyers reduce risk before finalizing dryer size, heating medium, material of construction, and process layout.
A serious buyer should bring representative feed, not ideal sample material. The feed sample should reflect real plant variation, including peak moisture, difficult batches, and contamination patterns. The paddle dryer pilot trial page is the logical next step before freezing a thermal oil heated paddle dryer specification.
Why Consider AS Engineers for This Application?
AS Engineers manufactures paddle dryers from GIDC Vatva, Ahmedabad, Gujarat, India, and positions the brand around practical drying solutions for industrial buyers. The company’s verified proof points include ISO 9001:2015 TUV India certification, CE certification, 25+ years of experience, 500+ clients, 1500+ projects, and 500+ operational dryers. These claims are relevant for buyers who need manufacturing credibility, after-sales support, and export-ready documentation.
The company’s paddle dryer portfolio includes standard, dual zone, and vacuum dryer variants. Thermal oil heating is part of the supported heating approach, along with steam-based systems. Buyers can review the main AS Engineers paddle dryer page when comparing equipment options.
FAQs
1. Is a thermal oil heated paddle dryer better than a steam paddle dryer?
Not always. Thermal oil is better when the process needs stable higher-temperature heating or when the plant has a suitable thermic fluid system. Steam may be better when existing boiler capacity, process temperature, and cost conditions fit the duty.
2. What temperature can an AS Engineers thermal oil paddle dryer support?
According to AS Engineers, thermal oil heating can support temperatures up to 400°C. The actual operating point depends on the product, moisture, safety requirement, heating system, and final drying target.
3. Can a thermal oil heated paddle dryer dry sticky sludge?
Yes, paddle dryers are commonly used for sticky sludge and wet cake because the paddles mix, shear, and renew the heated contact surface. A pilot trial is still recommended because stickiness changes with sludge chemistry and moisture profile.
4. What industries use thermal oil paddle dryers?
Typical users include wastewater treatment, chemicals, petrochemicals, pigments, dyes, minerals, food processing, pharma intermediates, polymers, and waste management. Final suitability depends on feed composition and process objective.
5. What should I ask before requesting a quotation?
Ask for feed testing, heating medium selection, target moisture confirmation, MOC recommendation, vapor handling design, utility requirement, layout needs, maintenance access, and after-sales support. Do not compare only machine price.
Closing
A thermal oil heated paddle dryer should be selected through process data, not guesswork. Share your feed moisture, daily quantity, target outlet moisture, heating utility, and material details with AS Engineers to evaluate the right dryer configuration. To move from discussion to specification, discuss a thermal oil heated paddle dryer requirement with the AS Engineers team.
