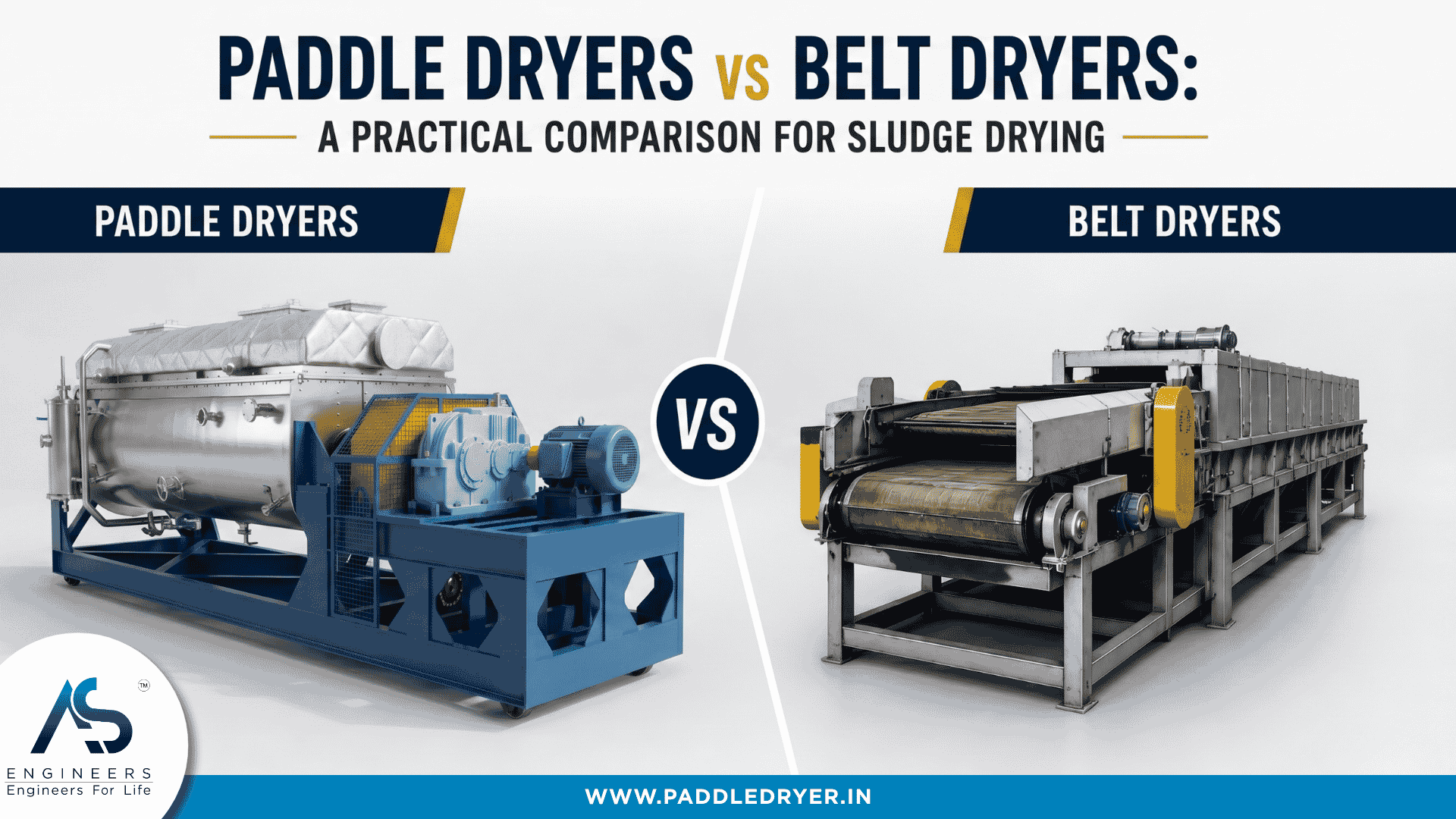

Choosing between a paddle dryer and a belt dryer for sludge comes down to one question: how will your sludge behave once it starts losing water? Both machines can dry it. They go about it very differently, and the differences show up in footprint, off-gas handling, feed preparation and maintenance.
The core difference
A paddle dryer heats by contact. Steam, thermic fluid or hot water heats the jacket and hollow shafts, and slowly turning paddles keep the sludge moving over those hot surfaces. The machine is enclosed.
A belt dryer heats by hot air. Material is spread on a moving belt and hot air is blown through or over it. The air carries the moisture away and has to be cleaned and often partly recycled.
Everything else follows from that choice.
Side by side
| Point | Paddle dryer | Belt dryer |
|---|---|---|
| Heat transfer | Conduction through metal surfaces | Hot air through or over the bed |
| Exhaust volume | Low, mostly evaporated water | Large, because a lot of air moves through |
| Footprint | Compact, single trough | Long and often multi-tier |
| Feed preparation | Handles sticky cake and pastes directly | Usually needs the feed formed or spread evenly on the belt |
| Mixing | Active, paddles turn the material | Passive, material sits on the belt |
| Enclosure and odour | Fully enclosed | Housed, but with a large air system to treat |
| Moving parts in contact with product | Paddles and shafts | Belt, rollers and air system |
The exact result for your plant depends on the sludge and the layout. Treat the table as a guide to where each machine tends to sit.
Where paddle dryers tend to win
- Sticky sludge. The mixing action carries material through the tacky stage. Belt dryers can struggle if the feed does not form a stable, even layer.
- Small exhaust treatment. Less gas means a smaller scrubber, condenser or filter.
- Limited space. One compact trough replaces a long belt line.
- Odour and solvent control. An enclosed machine is easier to purge and to connect to a condenser.
- Variable feed. Mixing evens out moisture differences inside the machine.
Where belt dryers can make sense
- Low-grade heat is available. A belt dryer can run on warm air from waste heat.
- The feed is already formed. Extruded or pelletised material spreads well and dries evenly on a belt.
- Very large volumes of easy material. Where the material is not sticky and space is no concern, the simplicity can be attractive.
A published comparison
Published laboratory work compares paddle dryers with disc dryers, another indirect type, on sewage sludge and found the paddle dryer coped better with the viscous stage. That does not describe belt dryers directly, and it was a small test on one sludge, so use it as a pointer only.
How to decide for your plant
- Write down your sludge’s behaviour: sticky, abrasive, oily, odorous.
- List your utilities: steam, thermic fluid, hot water or waste heat.
- Note your space limit and your exhaust treatment limit.
- Decide the final moisture the disposal or reuse route needs.
- Test your own sample.
A trial answers more than any comparison table. AS Engineers runs paddle dryer trials on a 25 kg/hr machine, at its works or at your site, for a nominal fee that is waived on order. Request a pilot trial.
